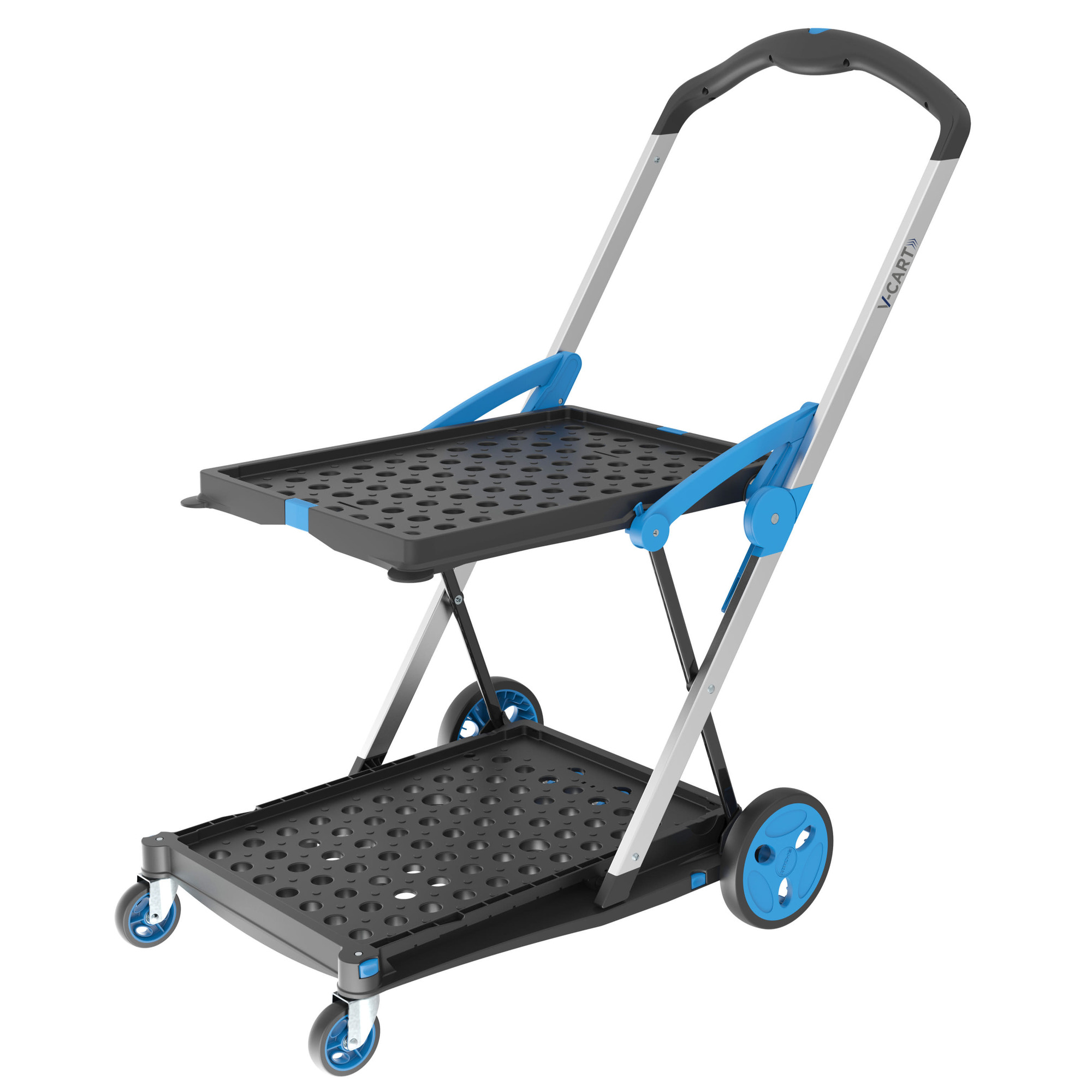

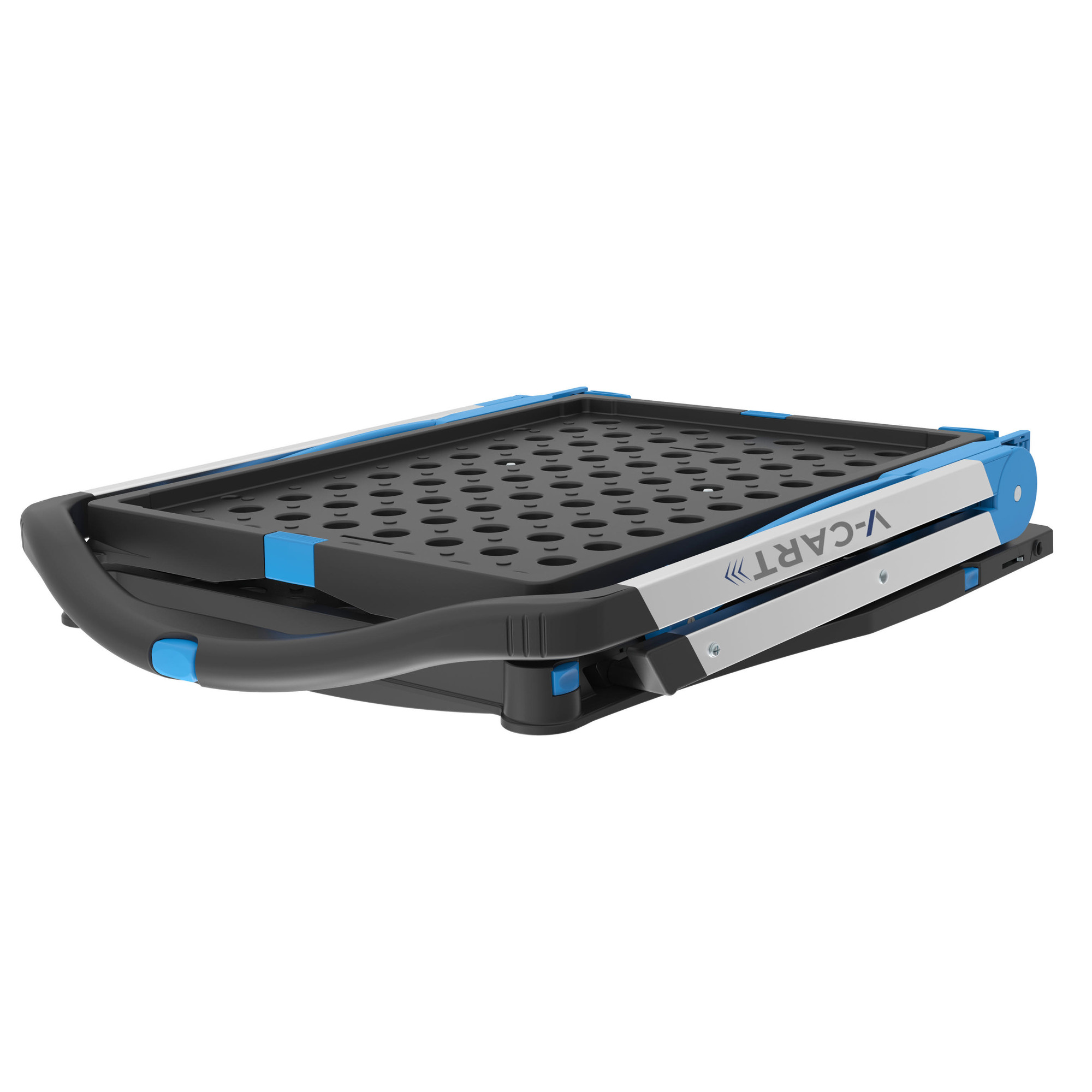

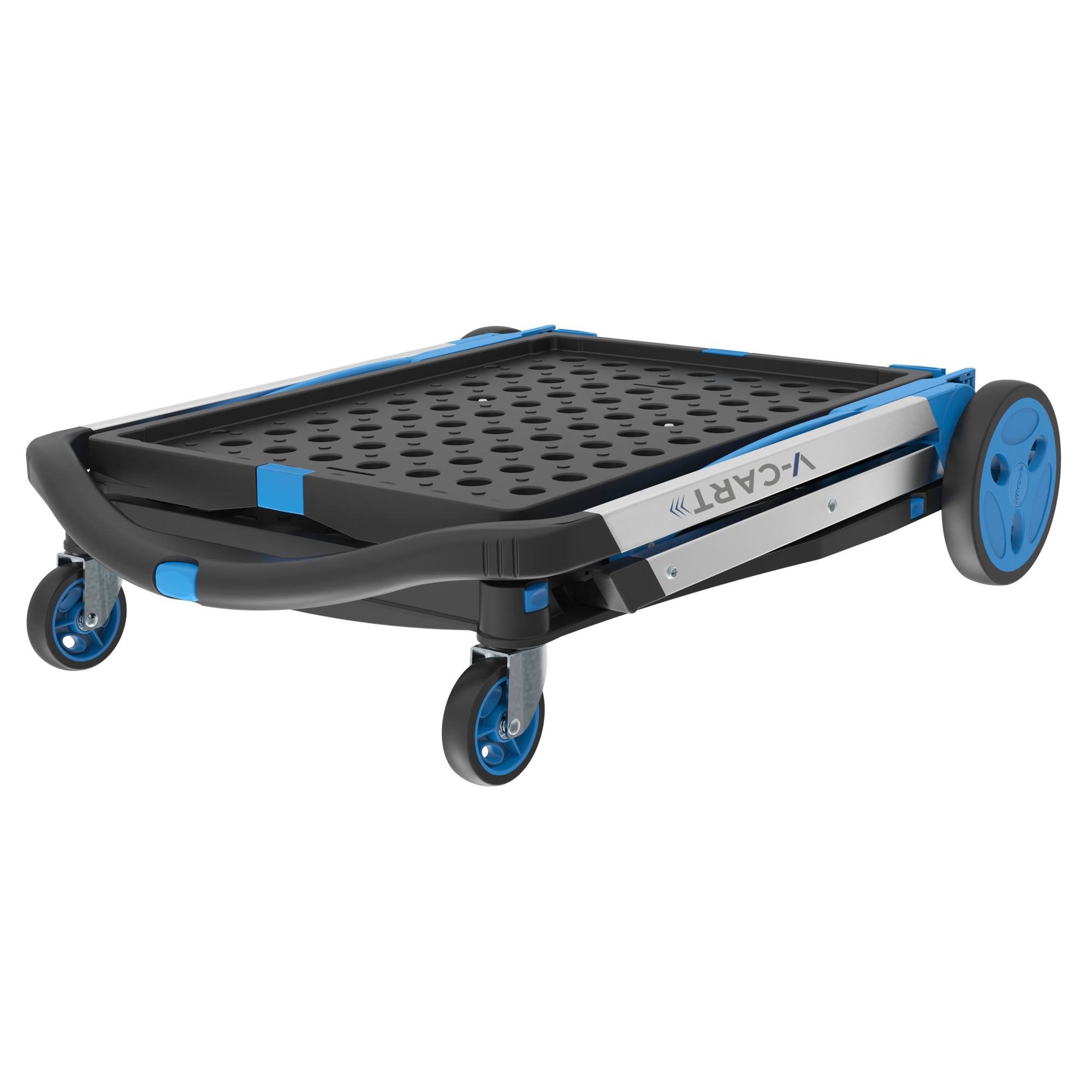

The V-Cart is a collapsible trolley that can be used for hundreds of applications. It is ideal for use in the workplace, schools, home, offi­ce, hospitals, courier services, shopping malls, nursing homes and much more! It can be completely collapsed by the push of a button on the handle. The wheels are able to be removed by the push of a button and stored underneath for compact transport and storage.

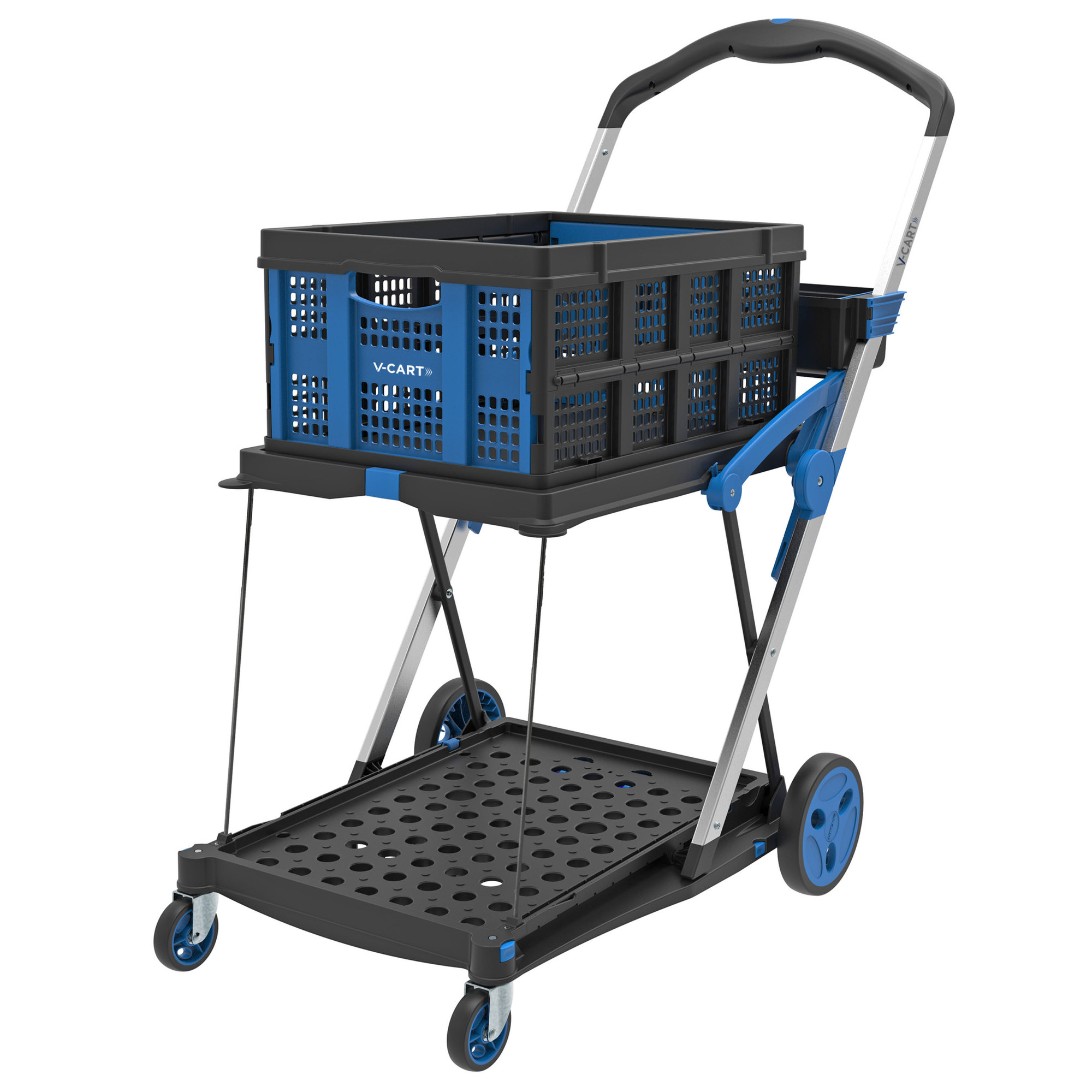

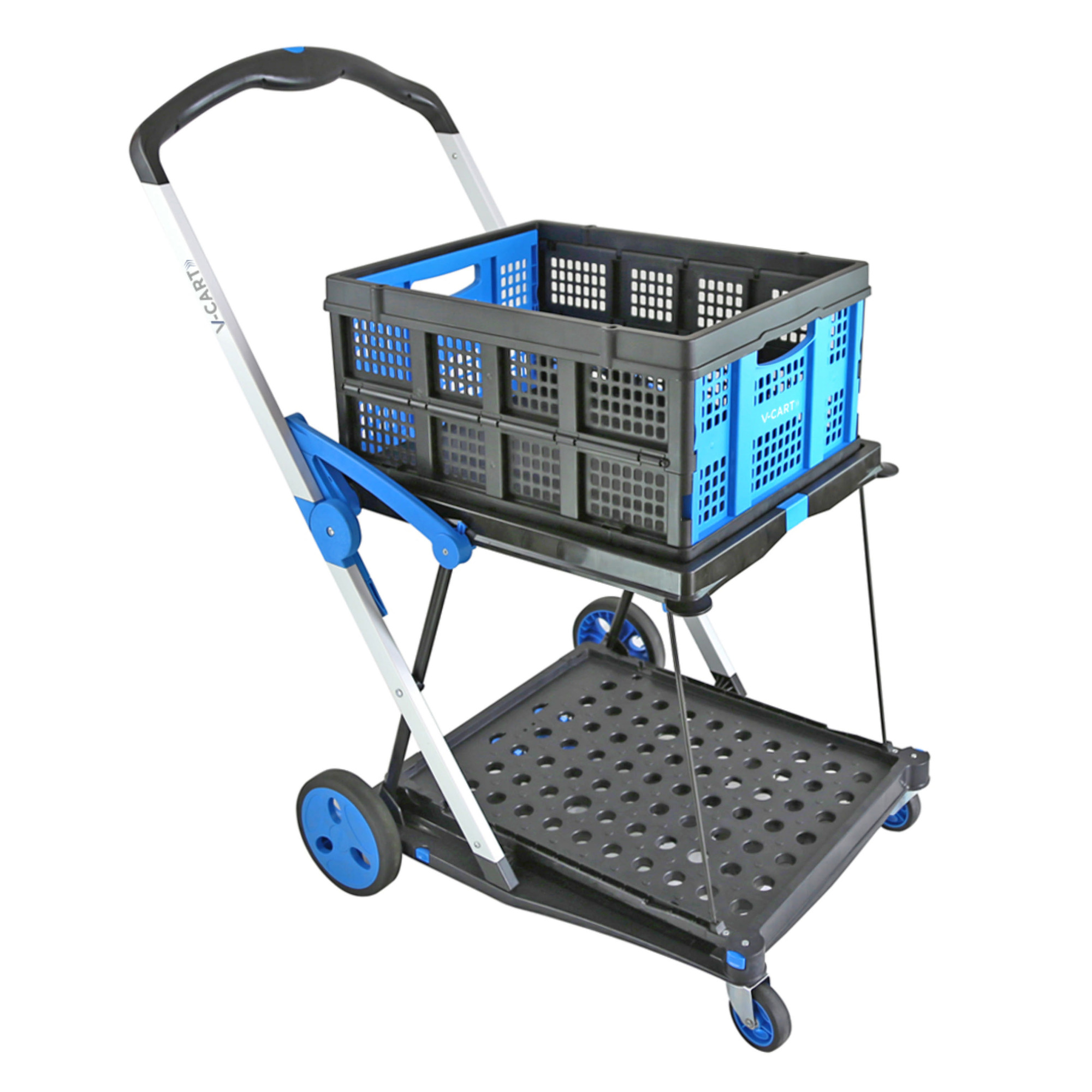

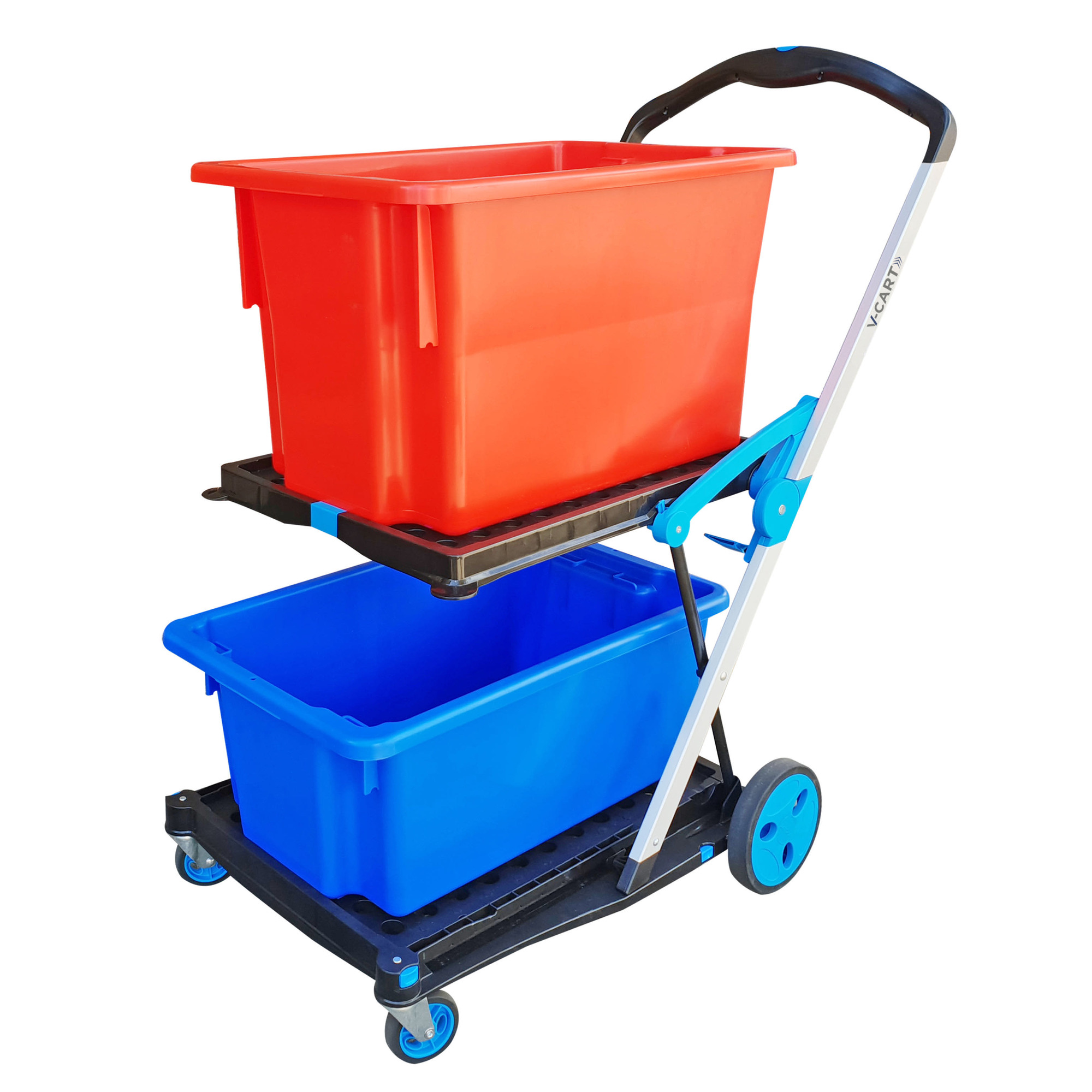

The V-Cart is supplied with one collapsible basket which will lock into place on either the top or bottom platform. The top platform can be folded back to allow larger items to be transported if required.

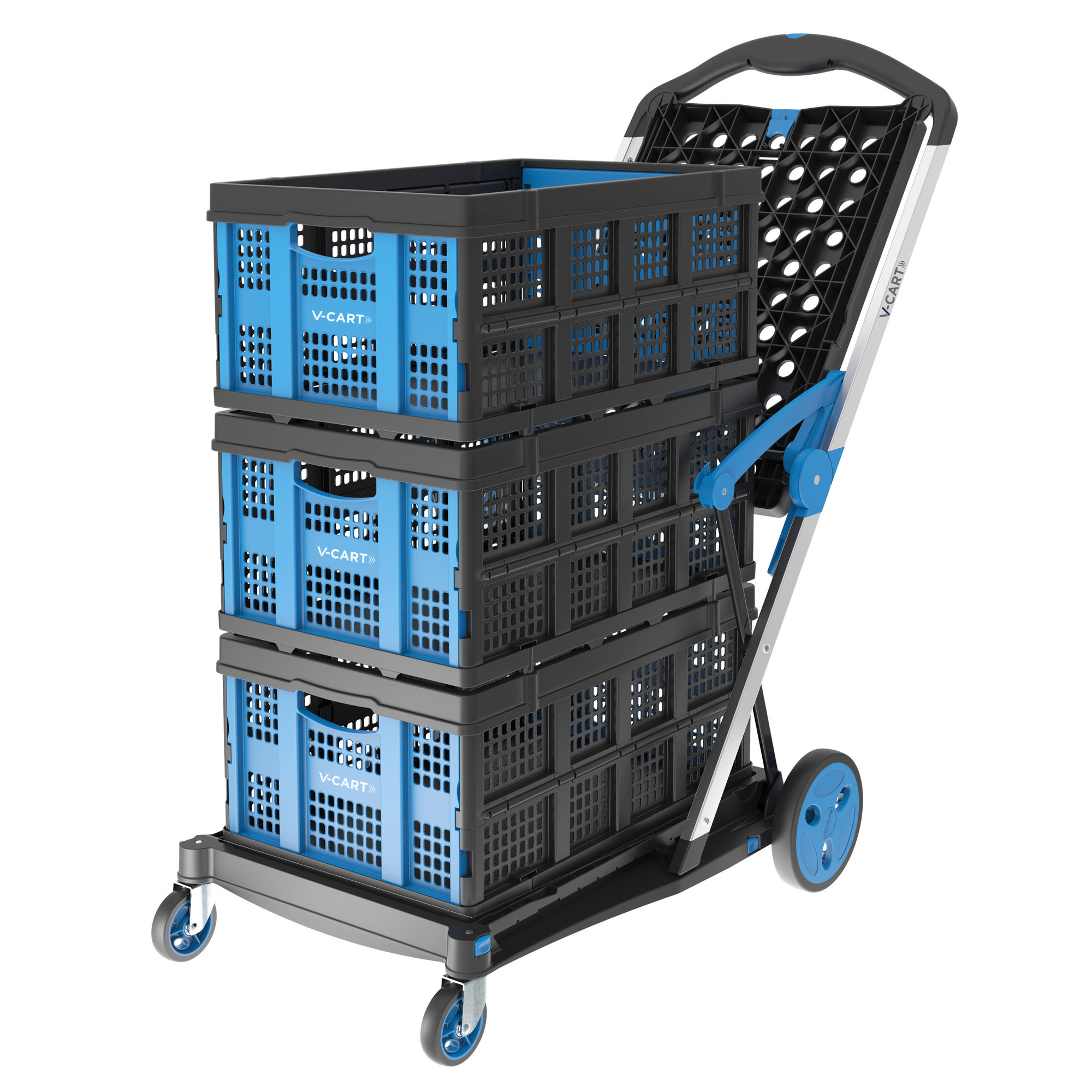

Extra baskets are available for use on both platforms or up to 4 baskets can be stacked on the bottom platform. The basket SKU is TR1805.

A robust foot pedal brake allows the V-Cart to be locked in position whilst loading or unloading.

The injection moulded plastic and aluminium design means that whilst the V-Cart is lightweight it is still very robust and has a great carrying capacity.

The basket fits foolscap suspension files - great for transporting documents throughout the office.


Download the V-Cart Product Brochure

V-Cart Product Brochure


Presentation Video



Instruction Video

Download the V-Cart Product Brochure

V-Cart Product Brochure


Download the V-Cart Instruction Manual

V-Cart Instruction Manual



  • Overall Length Assembled: 1000mm (39in)
  • Overall Width Assembled: 600mm (23in)
  • Overall Height Assembled: 1070mm (42in)
  • Overall Length Folded: 740mm (29in)
  • Overall Width Folded: 540mm (21in)
  • Overall Height Folded: 105mm (4in)



  • Total Trolley Capacity: 90kg

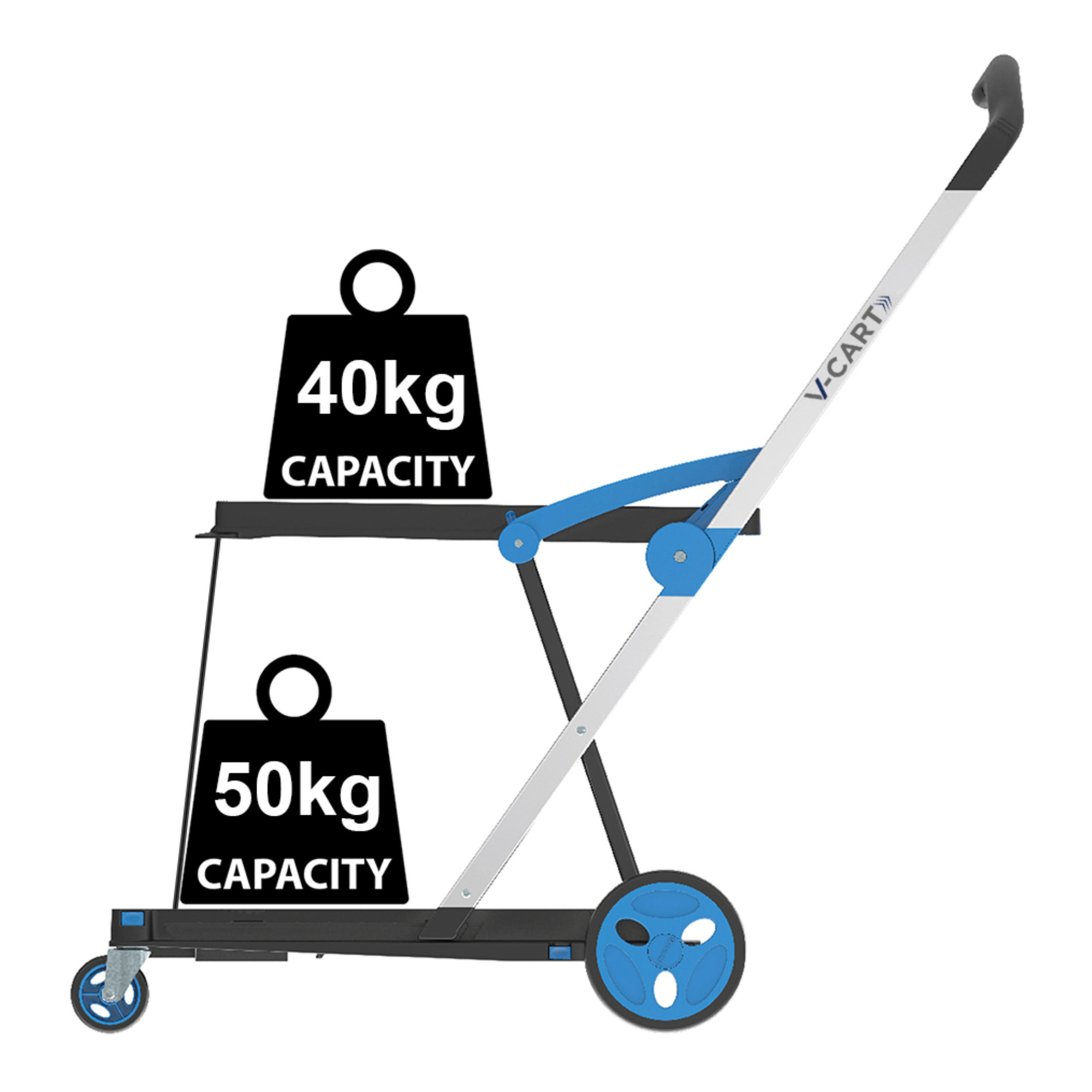

  • Top Shelf Capacity: 40kg
  • Botton Shelf Capacity: 50kg
  • Trolley Weight: 10kg
  • Basket Weight: 1.8kg
  • Height from ground level to the top of the basket on top platform: 830mm
  • Height from ground level to the top of the top platform: 565mm
  • Height from ground level to the top of the bottom platform: 120mm

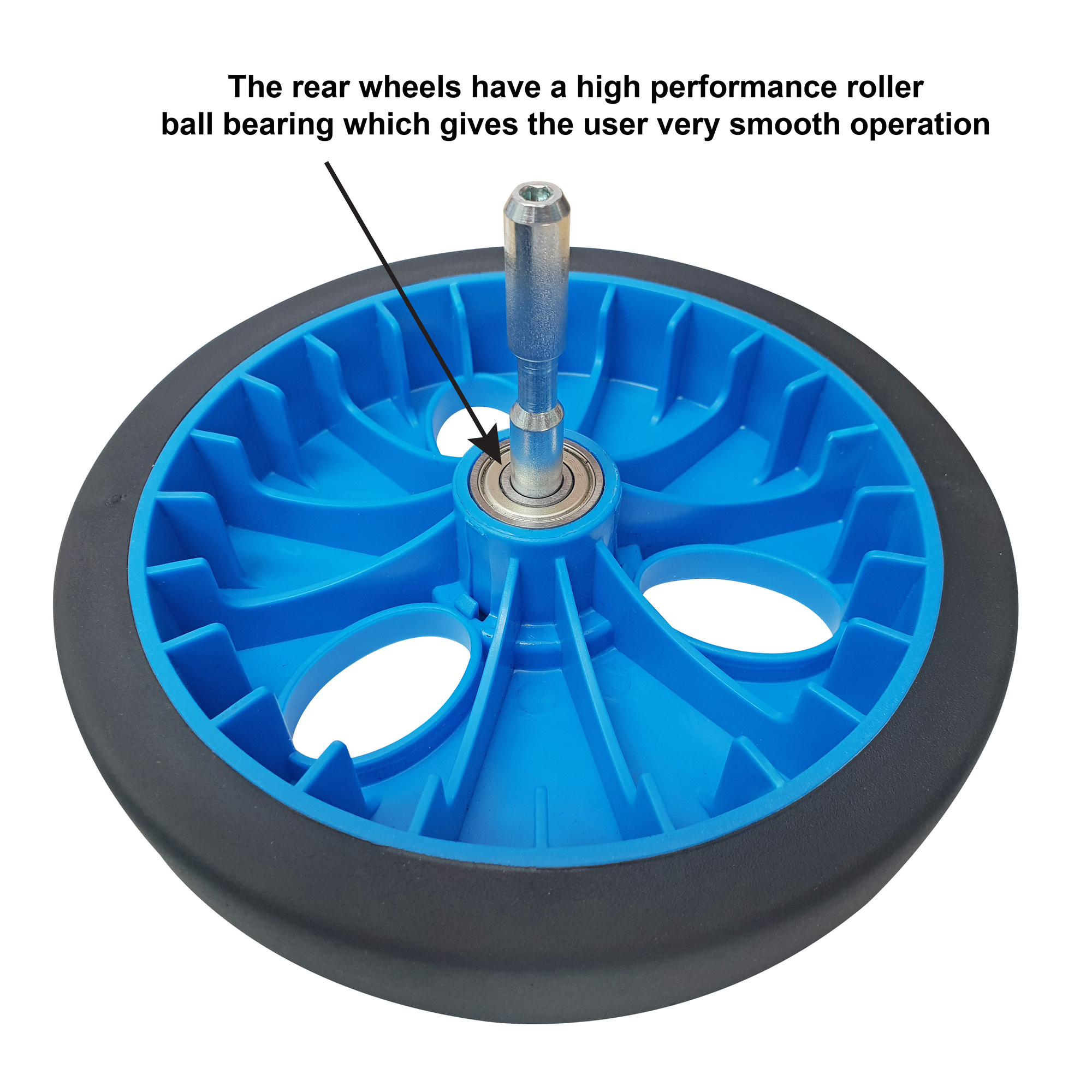

  • Rear Wheel Diameter: 180mm
  • Front Wheel Diameter: 85mm
  • V-Cart Trolley SKU: TR1800

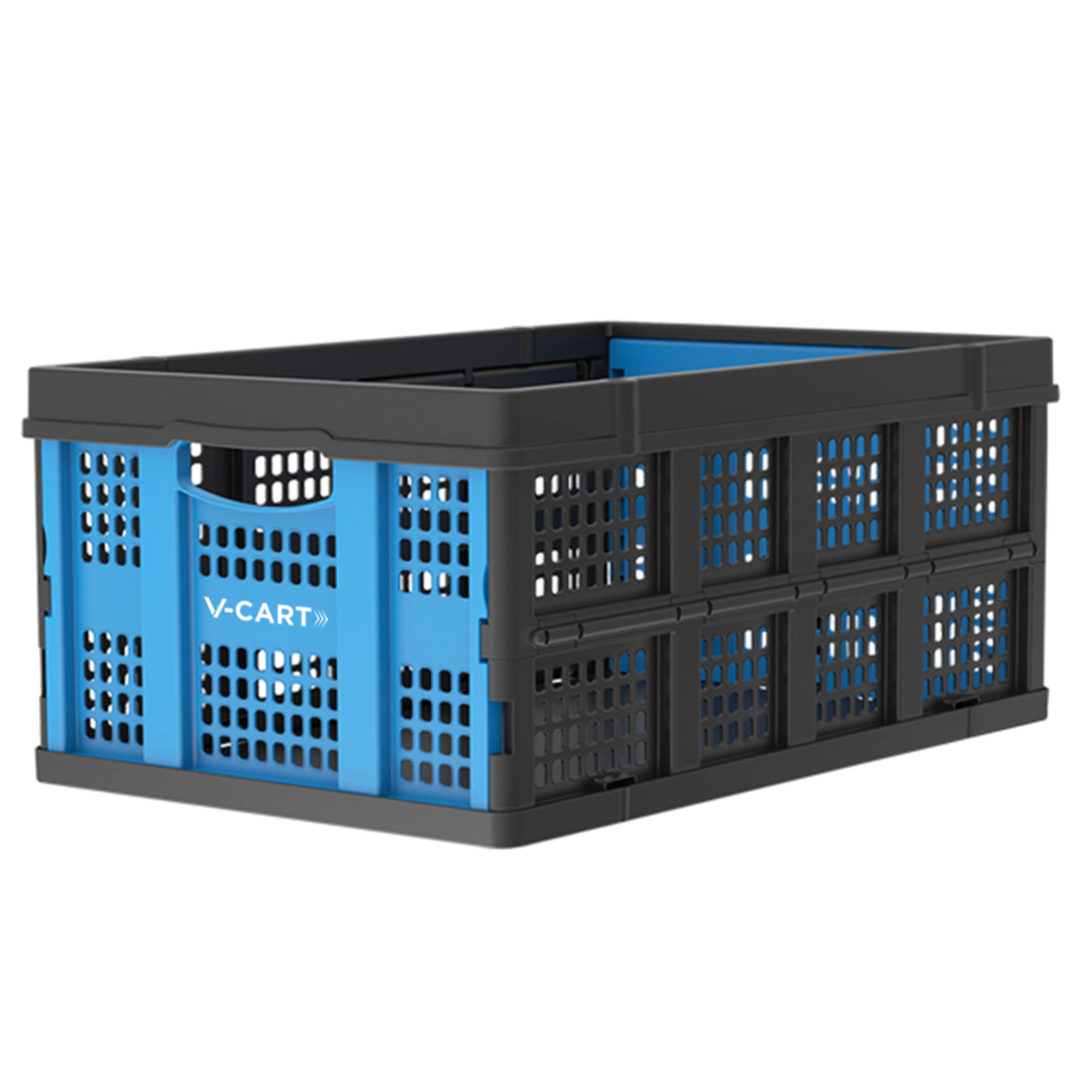

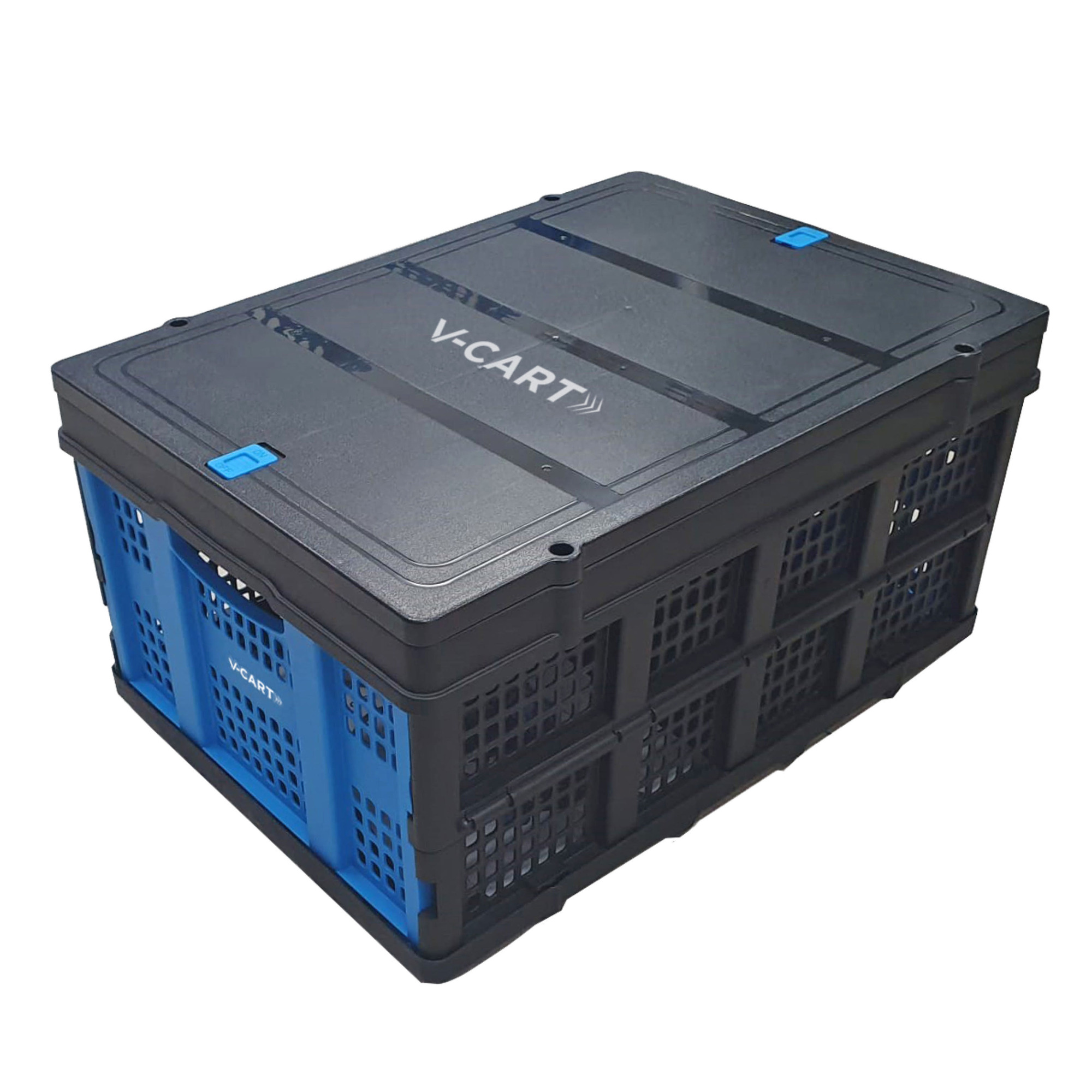

Basket Dimensions (External)

V-Cart Basket SKU: TR1805

  • Overall Length: 560mm (22in)
  • Overall Width: 400mm (15in)
  • Overall Height: 260mm (10in)

Basket Dimensions (Internal)

  • Overall Length: 525mm (20in)
  • Overall Width: 365mm (14in)
  • Overall Height: 255mm (10in)

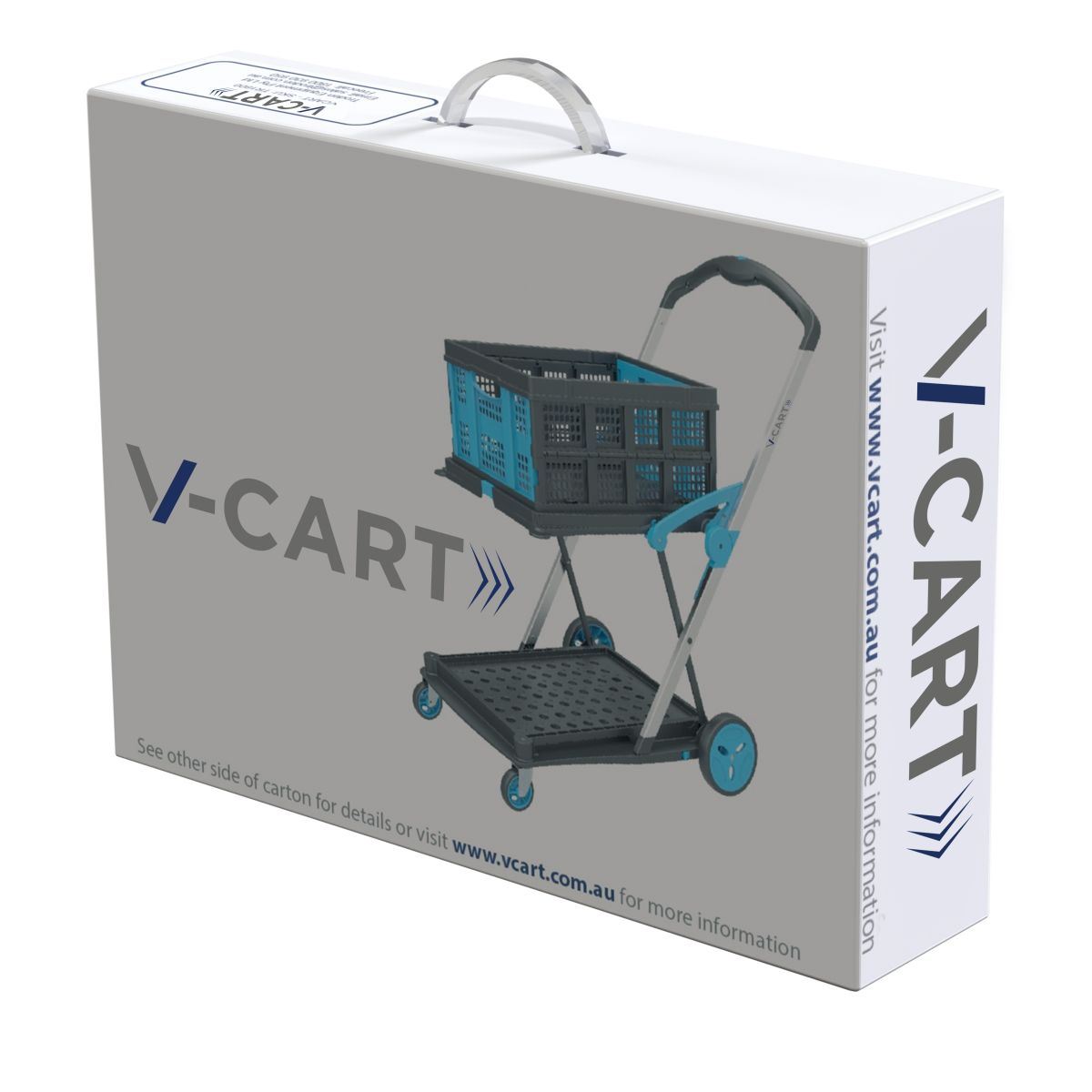

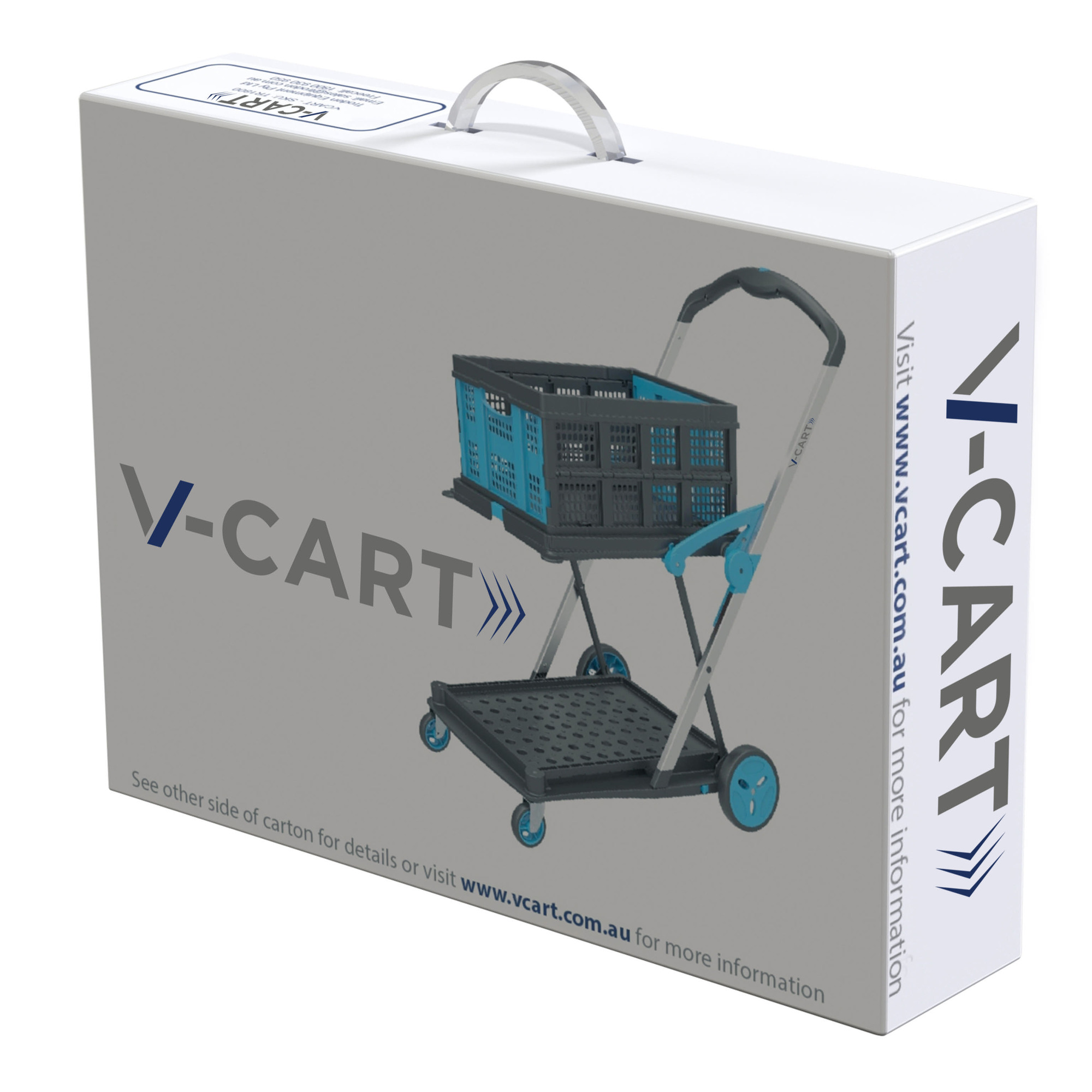

The V-Cart is shipped in a white glossy cardboard carton with an inbuilt plastic handle for easy carrying. The box contains 1 x V-Cart Trolley and 1 x V-Cart Basket. Extra baskets are available which can be purchased seperately.

TR1800 - V-CART Trolley Carton Dimensions

  • Carton Length: 760mm (29in)
  • Carton Height: 570mm (22in)
  • Carton Depth: 170mm (6.7in)
  • Package Weight: 10.5kg (23lbs)

V-Cart Carton


TR1805 - V-CART Basket Carton Dimensions

  • Carton Length: 570mm (22in)
  • Carton Height: 410mm (16in)
  • Carton Depth: 75mm (3in)



V-CART Pallet & Container Quantities

  • Cartons Per Pallet: 26
  • Pallet Size [WxDxH]: 1160x1160x1680mm (45x45x66in)
  • Cartons Per 20ft Shipping Container: 270
  • Cartons Per 40ft Shipping Container: 540
  • Cartons Per 40ft HQ Shipping Container: 760

Download the V-Cart Pallet and Packing Configurations

V-Cart Instruction Manual
